Roll-to-Roll Laser Baking System
This system is primarily used for laser heating and dewatering of the positive and negative electrode sheets of lithium batteries.
Inquiry Phone：+86-400 8017 001
E-mail：contact@delphilaser.com■ Specifications:
Project | Specifications |
Material | Compatible with both anode and cathode; battery materials continuously coated on copper or aluminum foil substrates |
Compatible Electrode Sheet Size | Max:600mm(w) |
Equipment Speed | >60m/min |
Tension Fluctuation | ±5% during constant speed segment |
Incoming Material Outer Diameter | Max.700 |
Incoming Material Weight | ≤600 kg (6-inch air shaft) |
Winding Deviation | Within ±1 mm |
Noise Level | ≤75dB |
Dimensions | 4(L)x1.8(W) x2.7(H)m |
Weight | 5T |
Total Power Consumption | 96KW |
■ Advantages:
◆ Rapid Heating: 0.1 seconds from room temperature to 200°C
◆ High Temperature Control Accuracy: ±2°C
◆ Excellent Temperature Uniformity: Laser energy uniformity >90%
◆ Effective and Efficient Moisture Removal
◆ Low Energy Consumption: Only 1/4 of traditional baking oven consumption
◆ High Processing Speed: ≥60 m/min
◆ Compact Design with Small Footprint: Only 1/10 the size of a traditional oven
■ Applications:
Unwinding + Laser Baking

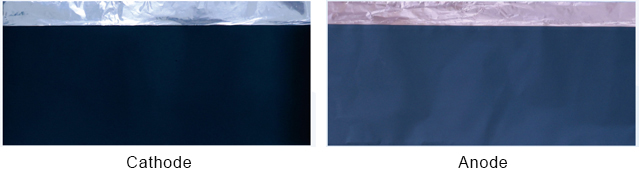

■ Samples
