Thin Film Laser Etching System
The equipment is mainly used for etching process of silver paste, copper paste conductive coating, ITO coating and nano silver coating on PET film or glass substrate. The equipment is equipped with a large format 2500mm x 2000mm and multi-head high speed processing optical system.
Inquiry Phone：+86-512-6507 0150
E-mail：yj.tao@delphilaser.com■ Specifications：
Equipment Model | LES07 | LES50 |
Equipment station | Single head single station | Eight double-headed high-speed thin-film laser etching |
Processing width | ≤27inch(600mm×600mm) | ≤110inch（2650mm×1600mm） |
Scanning width | 120mm×120mm/170mm×170mm（Optional） | 170mm×170mm |
Scanning speed | 3000mm/s~5000mm/s（Customizable） | |
Processing line width | 15μm-40μm（Adjustable） | 30um~40um |
Dimensional accuracy | ±25μm | |
Splicing accuracy | ≤±5um | ≤±10um |
Processing graphics | Straight / diagonal / curved lines | |
■ Advantages：
◆ Can achieve 15μm narrow bezel process
◆ Perfect process for small and medium size narrow line width process
◆ Self-developed operating system, simple and easy to operate
◆ High efficiency, high stability, low cost processing system with high cost performance
◆ Simple structure, easy for later equipment maintenance, low maintenance costs
◆ Perfect after-sales service, effective and timely solution to any problems encountered by customers
■ Applications：
◆ Etching of silver paste, copper paste conductive coating, ITO coating and nano silver coating on PET film or glass substrate
◆ Etching of conductive film layer on OGS of touch screen body GF, GFF, OGS of cell phone, smart wearable device; car touch screen body
◆ Processing of medical devices such as blood glucose meter test strips

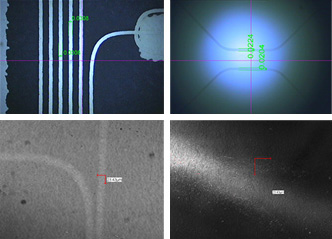

■ Samples：
